Control Motors

KPT Industries has rich knowledge of Winding Technology. KPT Industries Manufactures special purpose Universal Control Motors made to the design / specifications of customers. The applications of Control Motors are in high voltage circuit breakers, control panels etc. KPT Industries is regularly supplying Control Motors to Cromption Greaves Ltd., Siemens Ltd., Bharat Heavy Electricals Ltd. ( BHEL), Biecco Lawrie Ltd., Schneider Electric Infrastru. Ltd. etc., in India, as per their design / specifications.

Needless to say, KPT Industries has the requisite capabilities to design, develop and manufacture any type of universal motors.

Sr.	Type		Volts	Full Load Amps.	Cycle	Phase	Full Load Watts ( o/p )	No Load RPM Range	Add to Enquiry

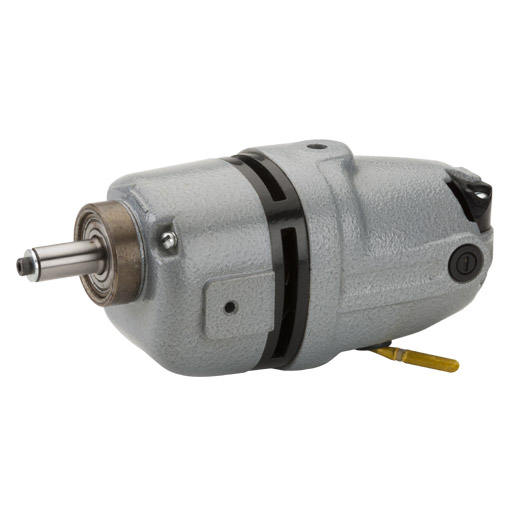

A	C-21	( Anti clock wise )
			50	11.00	25-60	1Φ	0.3 KW	630 / 770
			60	11.00	25-60	1Φ	0.3 KW	630 / 770
			110	5.20	25-60	1Φ	0.3 KW	630 / 770
			125	4.80	25-60	1Φ	0.3 KW	630 / 770
			220	2.30	25-60	1Φ	0.3 KW	630 / 770
			230	2.60	25-60	1Φ	0.3 KW	630 / 770
			240	2.20	25-60	1Φ	0.3 KW	630 / 770
			250	2.40	25-60	1Φ	0.3 KW	630 / 770

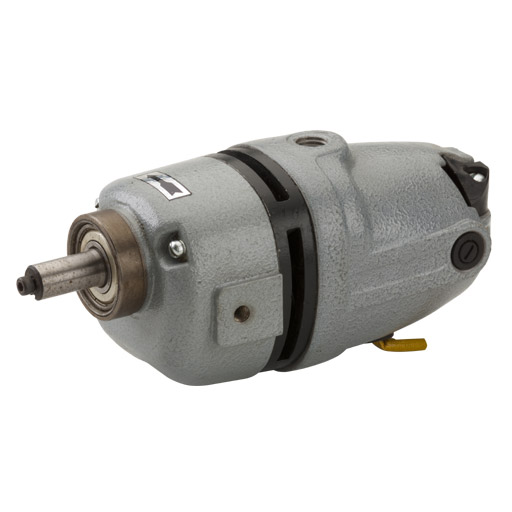

B	C-22	( Closk wise Rotation )
			50	14.00	25-60	1Φ	0.3 KW	500 / 850
			110	6.00	25-60	1Φ	0.3 KW	500 / 850
			125	5.70	25-60	1Φ	0.3 KW	500 / 850
			230	2.90	25-60	1Φ	0.3 KW	500 / 850
C	C-22	( Anti clock wise )
			110	6.00	25-60	1Φ	0.3 KW	680 / 850
			125	5.70	25-60	1Φ	0.3 KW	680 / 850
			230	2.90	25-60	1Φ	0.3 KW	680 / 850

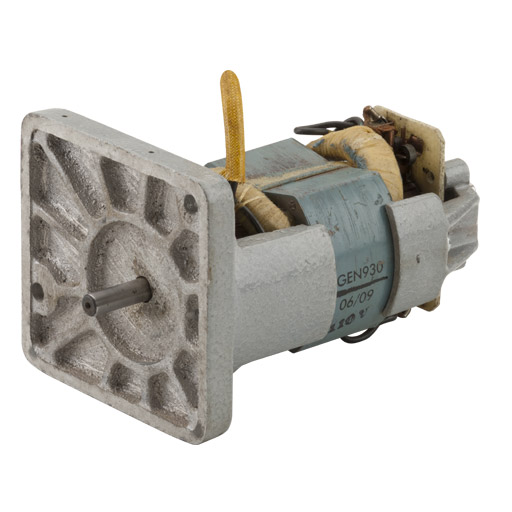

D	C-23
			110	8.00	-	S 2	0.365 KW	24000 / 29200
			220	4.00	-	S 2	0.365 KW	24000 / 29200
E	C-29
			110	5.50	25-60	1Φ	0.54 KW	650 / 750
			220	2.70	25-60	1Φ	0.54 KW	650 / 750
			240	2.50	25-60	1Φ	0.54 KW	650 / 750

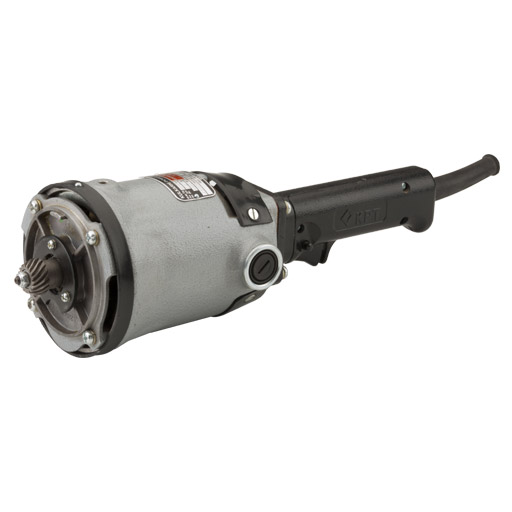

F	C-33
			220	10.00	25-60	1Φ	2.00 KW	20500 / 25000

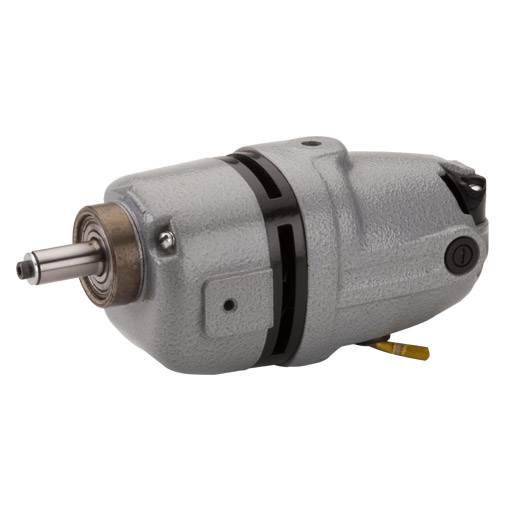

G	C-36
			110	2.60	ac / dc	1Φ	0.285 KW	350 / 550
			125	2.30	ac / dc	1Φ	0.285 KW	350 / 550
			230	1.30	ac / dc	1Φ	0.285 KW	350 / 550
			250	1.20	ac / dc	1Φ	0.285 KW	350 / 550

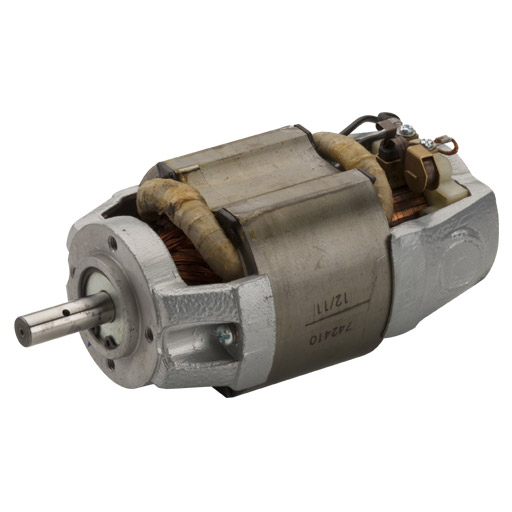

H	C-38
			110	5.00	dc	1Φ	0.55 KW	12000 / 15000
			125	4.40	dc	1Φ	0.55 KW	12000 / 15000
			220	2.50	dc	1Φ	0.55 KW	12000 / 15000

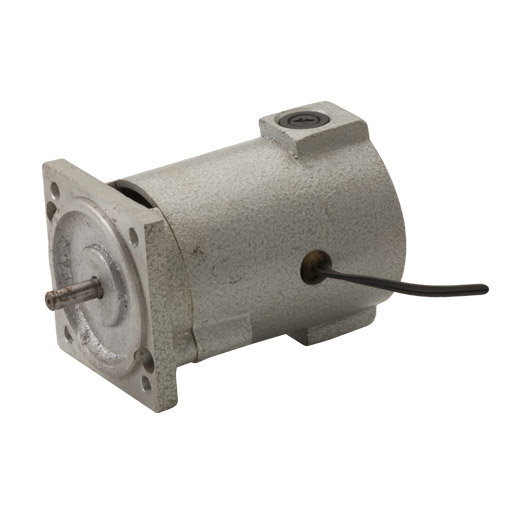

I	C-39
			220	1.00	ac / dc	1Φ	0.20 KW	22000 / 26000
J	C-50
			125	7.00	ac / dc	1Φ	0.35 KW	665 / 800
			230	4.00	ac / dc	1Φ	0.35 KW	665 / 800

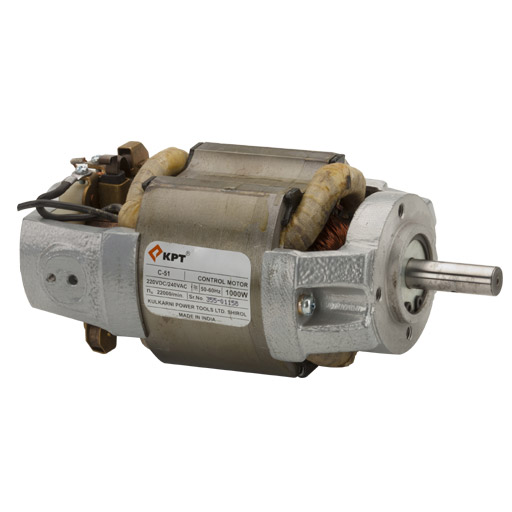

K	C-51
			240	2.50	dc	1Φ
L	C-56
			110	2.60	ac / dc	1Φ	100 KW	200 / 260
			220	1.30	ac / dc	1Φ	100 KW	200 / 260

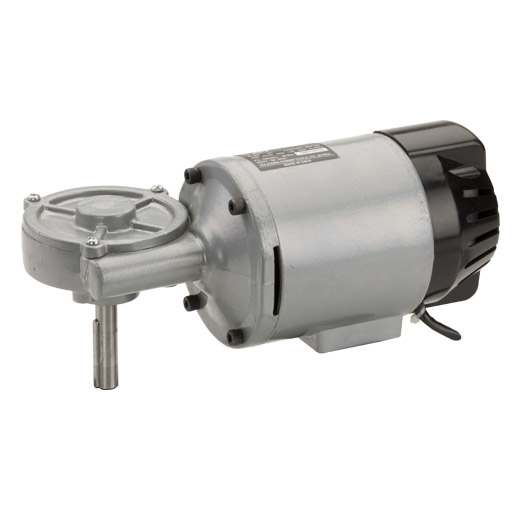

M	C-57
			110	3.20	ac / dc	1Φ	150 KW	165 / 230
			220	1.60	ac / dc	1Φ	150 KW	165 / 230

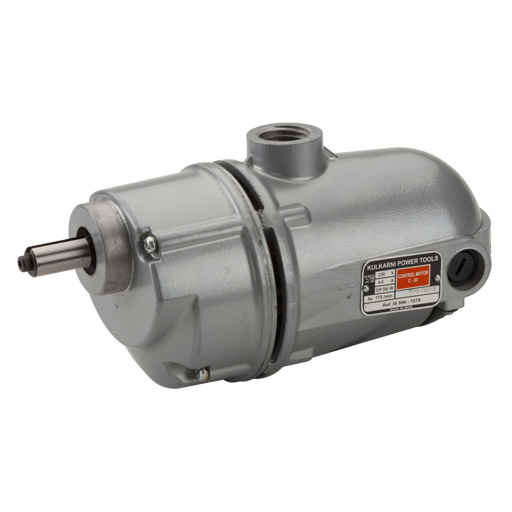

N	C-59
			110	3.20	ac / dc	1Φ	150 KW	165 / 230
			220	1.60	ac / dc	1Φ	150 KW	165 / 230
