KATP6522E

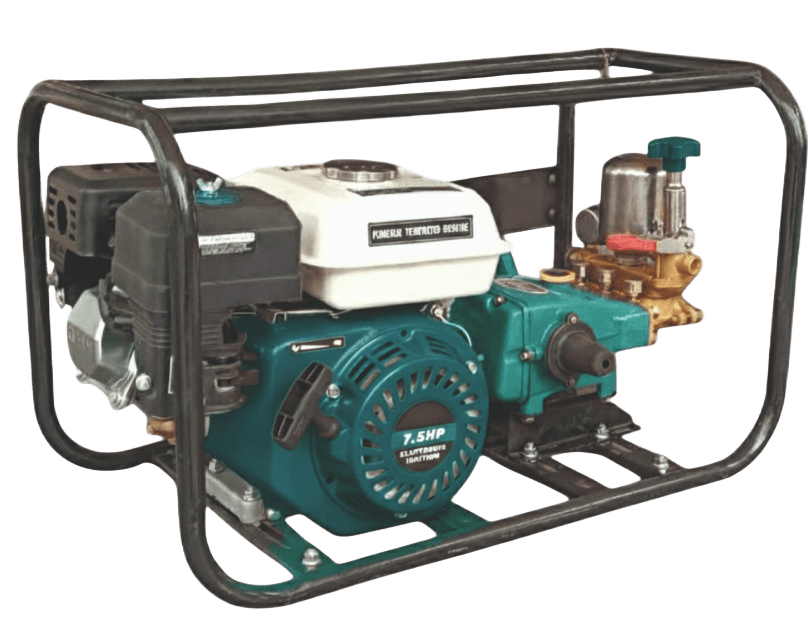

Engine operated HTP Sprayer set
| Specification | Unit | Value |
|---|---|---|
| Model No. | -- | KATP6522E |
| Model Name | -- | Tejas 22 |
| Engine Type | -- | 4 Stroke, Single Cylinder |
| Engine Fuel | -- | Petrol |
| Displacement | CC | 196 |
| Engine Power | HP | 6.50 |
| Engine RPM | RPM | 6.50 Max |
| Pressure ( Max ) | Mpa / Bar | 2-3 / 10-40 |
| Suction and discharge | Ltr / Min | 20-22 |
| Fuel tank capacity | Ltr | 3.00 |
| Engine oil capacity | Ml | 600 |
| Pump Oil Capacity | Ml | 600 |
| Pump RPM | RPM | 800-1200 |
| Staring System | -- | Recoil Starter |
Application
Ideal for spraying in all kind of Orchards, Tea Garden, Ground Crops & plantation.
